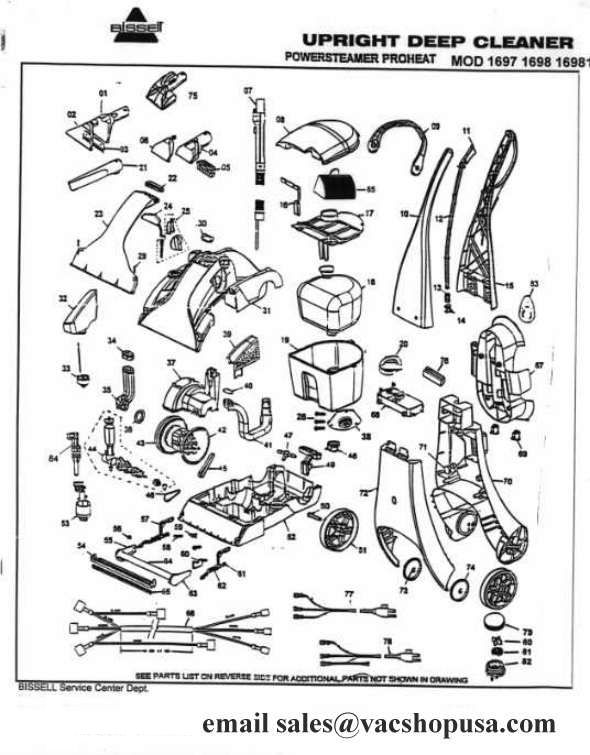

| Key |
Part No. |
Part
Description |
| 01 |
2109201 |
UPH TOOL 4"
COMP BLK REPL |
| 02 |
2030961 |
WINDOW FOR
4" TOOL LGCMREPL |
| 03 |
6030966 |
BRUSH-REMOVABLE, 4" TOOL REPL |
| 04 |
2159155 |
TUFF STAIN
TOOL 3" ASSEM REPL |
| 05 |
2149155 |
BRUSH FOR 3"
TOOL. REPL |
| 06 |
2039850 |
WINDOW 3"
TUFF-STAIN REPL |
| 07 |
2153163 |
HOSE/DUCT/GRIP ASSY 8FT REPL |
| 08 |
0154439 |
TANK LID
W/SCN&GSKT&HAND 1698 |
| 09 |
2034435 |
HANDLE TANK
REPL |
| 10 |
0144401 |
HANDLE UPPER
ASSY BK W/O LABEL |
| 11 |
2139168 |
TRIGGER 1697
REPL |
| 12 |
0147511 |
PUSH ROD
W/SPRING 1698 |
| 13 |
2108422 |
SPRING PUSH
ROD REPL |
| 14 |
2109592 |
VALVE ASSM
TRIGGER 1697 REPL |
| 15 |
2144406 |
HANDLE UPPER
ASSM BK W/O DEC |
| 16 |
2140325 |
FLOAT
ASSEMBLY TANK REPL |
| 17 |
2130213 |
BAFFLE &
FLOAT ASSY REPL |
| 17 |
2140213 |
BAFFLE &
BLADDER ASSM REPL |
| 18 |
2100315 |
BLADDER 1697
REPL |
| 19 |
0159041 |
TANK BOTTOM
W/AUTOLOAD RPL1698 |
| 20 |
0141782 |
DRAIN CAP
ASSEMBLY 1697 |
| 21 |
2109148 |
CREVICE TOOL
REPL |
| 22 |
2104052 |
SEAL TANK
INTERFACE 1697 REPL |
| 23 |
0149865 |
WINDOW
NOZZLE W/HOOK&DECO NEW |
| 24 |
2136988 |
DIVERTER
BLACK REPL |
| 25 |
2145170 |
DIVERTER
ASSEM REPL |
| 26 |
2807075 |
SCREW #6 1/2
PHL/SLT REPL |
| 29 |
2807030 |
SCREW #8PLAS
X 3/4 REPL |
| 30 |
2104054 |
GASKET
DIVERTER REPL |
| 31 |
0154909 |
MAIN HSG
ASSY COMP BLK1698REPL |
| 32 |
2101785 |
BOTTLE
ASSEMBLY REPL |
| 33 |
2101795 |
CAP
DETERGENT REPL |
| 34 |
2104050 |
GASKET-SHORT
DUCT REPL |
| 35 |
2103161 |
DUCT-SHORT,
MOTOR |
| 36 |
2104051 |
GASKET MTR
INTAKE REPL |
| 37 |
0132907 |
COVER MOTOR
W/LT EXT. NO ASSY. |
| 38 |
2107041 |
AUTO LOAD
ASSMEMBLY REPL |
| 39 |
2132993 |
COVER BELT
BLACK REPL |
| 40 |
2104053 |
O RIN0-LONG
DUCT 1697 REPL |
| 41 |
2103160 |
DUCT-LONG,
UPHOLSTERY REPL |
| 42 |
2104056 |
GASKET MOTOR
INNER REPL |
| 43 |
0175972 |
MOTOR 1697
W/BOX |
| 44 |
2107181 |
PUMP,W/LRG
PULLEY 1699 REPL |
| 45 |
0150624 |
BELT,PUMP
1PACK1699 W/INST |
| 45 |
2100622 |
BELT,PUMP
1PACK1699 W/INST |
| 46 |
0150621 |
BELT-BRUSH
1-PK W/INS 1698 |
| 46 |
2100621 |
BELT BRUSH
1-PACK REPL |
| 47 |
2158001 |
T ASSM ODD
BARB REPL |
| 48 |
0140710 |
AUTOLOAD CAP
& ASSY. 1697 |
| 49 |
5559102 |
PEDAL-HANDLE
RELEASE |
| 50 |
2100170 |
AXLE WHEEL
REPL |
| 51 |
2139754 |
WHEEL 1697
REPL |
| 52 |
0140454 |
BASE-HSG
ASSY ROTARY BRUSH |
| 53 |
2100107 |
AUTOMIX ASSY
W/O WELD CAP REPL |
| 54 |
2108451 |
SQUEEGEE
BARE FL TOOL REPL |
| 54 |
2149131 |
BARE FLOOR
ATTACH ASSY REPL |
| 55 |
5559121 |
PIVOT ARM
RIGHT ASSY. 1697 |
| 56 |
2107370 |
ARM RETAINER
RT 1697 REPL |
| 57 |
2000010 |
LEVER
ELEVATOR LEFT&RIGHT REPL |
| 58 |
2106107 |
SPRAY TIP
1699 REPL |
| 59 |
2102602 |
CONNECTOR T
1697 REPL |
| 60 |
2104054 |
GASKET
DIVERTER REPL |
| 60 |
5559128 |
ARM RETAINER
LEFT 1697 |
| 61 |
2000010 |
LEVER
ELEVATOR LEFT&RIGHT REPL |
| 62 |
2108420 |
SPRING
ELEVATOR LEVER REPL |
| 63 |
5559118 |
PIVOT ARM
LEFT ASSY - 1697 |
| 64 |
2101174 |
DOWEL TUFTED
BRUSH NEW REPL |
| 65 |
2108451 |
SQUEEGEE
BARE FL TOOL REPL |
| 66 |
0104451 |
HARNESS WIRE
1698 & 16981 |
| 66 |
2104446 |
HARNESS
W/INS TERMINALS |
| 67 |
2146752 |
HOSE RACK
& CORD WRAP REPL |
| 68 |
2104501 |
HEATER 1698
REPL |
| 70 |
0144432 |
HANDLE LWR
BK BLK W/SWITCHES |
| 71 |
2105603 |
LIGHT IND
REPL |
| 72 |
0144420 |
HNDL LWR
FRNT ASSY BK NEW HXFR |
| 73 |
2106215 |
E RING WHEEL
AXLE REPL |
| 74 |
2101256 |
BUSHING
HANDLE 1697 REPL |
| 75 |
2101197 |
TUBRO BRUSH
CLEAR BLUE REPL |
| 76 |
2108550 |
STABILIZER
HEATER 1697 REPL |
| 77 |
2102818 |
CORSET
W/HEYCO 30" 1698 REPL |
| 77 |
2102825 |
CORD 30" W/
HEYCO INS TERM REP |
| 79 |
2101651 |
CAP FLOW IND
REPL REPL |
| 80 |
2107635 |
SPINNER FLOW
IND REPL |
| 81 |
2103510 |
FILTER FLOW
IND 1-PK REPL |
| 82 |
2100489 |
BASE FLOW
IND O RING REPL |
| 83 |
0131154 |
CORD
WRAP |
| 84 |
2108722 |
PISTON
AUTOMIX REPL |
| xx |
2100290 |
KIT-SCREWS/NUTS/BOLTS REPL |
| xx |
2102485 |
CLAMP-LARGE
REPL |
| xx |
2102490 |
CLAMP
SMALL.24 REPL |
| xx |
2103418 |
GASKET
EXTRUDED .136"X32" |
| xx |
2104950 |
JUMPER |
| xx |
2105955 |
USERS GUIDE
UNIV - 1698 REPL |
| xx |
2139440 |
TUBE VINYL
10" 1697 REPL |
| xx |
2139442 |
TUBE VINYL
15.5" |
| xx |
2139444 |
TUBE VINYL
5" 1697 REPL |
| xx |
2139446 |
TUBE VINYL
28" 1697 REPL |
| xx |
2139447 |
TUBE
URETHANE 14" REPL |
| xx |
2139448 |
TUBE
URETHANE 32" REPL |
| XX |
8805040 |
706405002
NUT HEX #10-32 REPL |
