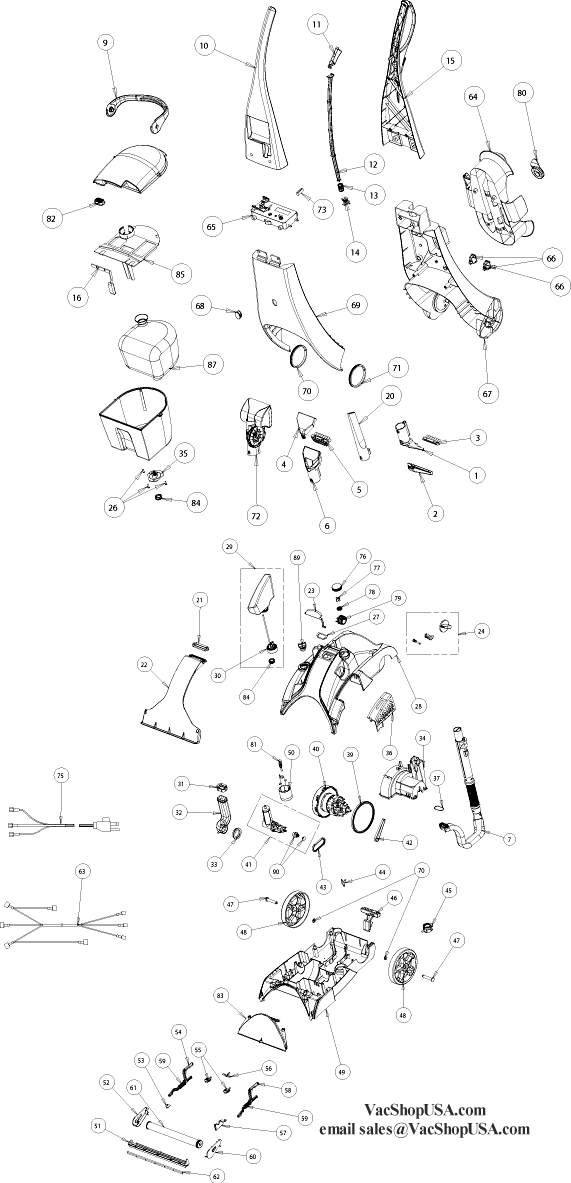

Key Part No. Part Description 01 2109201 UPH TOOL 4" COMP BLK REPL 02 2030961 WINDOW FOR 4" TOOL LGCMREPL 03 2030966 BRUSH-REMOVABLE, 4" TOOL REPL 04 2159155 TUFF STAIN TOOL 3" ASSEM REPL 05 2149155 BRUSH FOR 3" TOOL. REPL 06 2039850 WINDOW 3" TUFF-STAIN REPL 07 2153163 HOSE/DUCT/GRIP ASSY 8FT REPL 08 0154439 TANK LID W/SCN&GSKT&HAND 1698 09 2034435 HANDLE TANK REPL 10 0144401 HANDLE UPPER ASSY BK W/O LABEL 10 0134494 HANDLE UP FRNT CAPP. 1699P 10 0134092 HNDL UP FRNT N/T MIDNIGHT BLUE 10 0134403 HANDLE UPPER FRONT W/T SILVER 10 0134407 HNDL UP/FR W/TUR PLUM W/O DECO 11 2139168 TRIGGER 1697 REPL 12 0147511 PUSH ROD W/SPRING 1698 13 2108422 SPRING PUSH ROD REPL 14 2109592 VALVE ASSM TRIGGER 1697 REPL 15 2144405 HANDLE UPPER ASSM PLUM REPL 15 2144406 HANDLE UPPER ASSM BK W/O DEC 15 0144493 HANDLE UP ASSY CAPP. 1699P 15 0144502 HANDLE UP ASSY MIDNIGHT BLUE 15 0144500 HANDLE-UPPER ASSY SLVR W/POP 16 2140325 FLOAT ASSEMBLY TANK REPL 17 2140213 BAFFLE & BLADDER ASSM REPL 18 0149045 TANK/BAFFLE/BLADDER/FLOAT 20 2109148 CREVICE TOOL REPL 21 2104052 SEAL TANK INTERFACE 1697 REPL 22 0149863 WINDOW, NOZZLE ASSY. 1699 22 0149865 WINDOW NOZZLE W/HOOK&DECO NEW 23 2136988 DIVERTER BLACK REPL 23 2136986 DIVERTER PLUM REPL 23 0136981 DIVERTER CAPPUCCINO 1699P 23 0136992 DIVERTER MIDNIGHT BLUE 23 0136983 DIVERTER SILVER 1698 24 2145170 DIVERTER ASSEM REPL 25 2807075 SCREW #6 1/2 PHL/SLT REPL 27 2104054 GASKET DIVERTER REPL 28 0144956 HOUSING-MAIN CV ASSY PLUM 28 2144919 HOUSING,MAINCVASSYBLKW/GSKREPL 28 0144955 HOUSING-MAIN CV ASSY CAPP. 28 0144932 HSG, MAIN CV ASY MIDNIGHT BLUE 28 0144922 HOUSING, MAIN CV ASSY SILVER 29 2101785 BOTTLE ASSEMBLY REPL 30 2101795 CAP DETERGENT REPL 31 2104050 GASKET-SHORT DUCT REPL 32 2103161 DUCT-SHORT, MOTOR 33 2104051 GASKET MTR INTAKE REPL 34 0132907 COVER MOTOR W/LT EXT. NO ASSY. 35 2107041 AUTO LOAD ASSMEMBLY REPL 36 2132991 COVER BELT PLUM REPL 36 2132993 COVER BELT BLACK REPL 36 0132980 COVER BELT CAPPUCCINO 1699P 36 0132952 COVER-BELT MIDNIGHT BLUE 36 0132982 COVER BELT SILVER 1698 37 2104053 O RIN0-LONG DUCT 1697 REPL 38 2103160 DUCT-LONG, UPHOLSTERY REPL 39 2104056 GASKET MOTOR INNER REPL 40 0175972 MOTOR 1697 W/BOX 41 2107181 PUMP,W/LRG PULLEY 1699 REPL 42 0150628 BELT,PUMP 1PACK1699 W/INST 43 0150621 BELT-BRUSH 1-PK W/INS 1698 44 2158001 T ASSM ODD BARB REPL 45 0140710 AUTOLOAD CAP & ASSY. 1697 46 5559102 PEDAL-HANDLE RELEASE 47 2100170 AXLE WHEEL REPL 48 2139754 WHEEL 1697 REPL 49 0140449 BASE, W/WINDOW ASSY. 1699 50 2100107 AUTOMIX ASSY W/O WELD CAP REPL 51 2149131 BARE FLOOR ATTACH ASSY REPL 52 5559121 PIVOT ARM RIGHT ASSY. 1697 53 0147372 RETAINER - ARM ASSY RIGHT 1699 54 2000010 LEVER ELEVATOR LEFT&RIGHT REPL 55 2106107 SPRAY TIP 1699 REPL 56 2102602 CONNECTOR T 1697 REPL 57 0147373 RETAINER - ARM ASSY LEFT 1699 58 2000010 LEVER ELEVATOR LEFT&RIGHT REPL 59 2108420 SPRING ELEVATOR LEVER REPL 60 5559118 PIVOT ARM LEFT ASSY - 1697 61 0101158 BRUSH-FLOOR 5 ROW NEW 1699 62 2108451 SQUEEGEE BARE FL TOOL REPL 63 0104451 HARNESS WIRE 1698 & 16981 64 2146752 HOSE RACK & CORD WRAP REPL 65 0104503 HEATER 700W 1699 66 2108827 SWITCH 1 SPD 8 AMP VAC REPL 66 0108801 SWITCH HEATER LIGHTED 1698 66 5559125 SWITCH ROCKER RED REPL 67 0144305 HANDLE-LWR BACK ASSY. SILVER 67 0144313 HANDLE-LWR BACK ASSY PLUM 67 0144308 HANDLE-LWR BACK ASSY. BLACK 67 0144307 HANDLE-LOWER BACK ASSY. CAPP. 67 0144303 HANDLE-LWR BACK ASSY MID BLUE 68 2105603 LIGHT IND REPL 69 0144443 HNDL LWR FRNT W/LITE PLUM16991 69 0144404 HNDL LWR FRNT W/LITE BLK 1699 69 0144478 HNDL LWR FRNT W/LITE CAP1699P 69 0144032 HANDLE-LWR FRNT ASSY. MID BL 69 0144355 HANDLE-LWR FRNT ASSY. SILVER 70 2106215 E RING WHEEL AXLE REPL 71 2101256 BUSHING HANDLE 1697 REPL 72 2101197 TUBRO BRUSH CLEAR BLUE REPL 73 2108550 STABILIZER HEATER 1697 REPL 75 0102844 CORD 3W 17GA W/O HEYCO 301699 76 2101651 CAP FLOW IND REPL REPL 77 2107635 SPINNER FLOW IND REPL 78 2103510 FILTER FLOW IND 1-PK REPL 79 2100489 BASE FLOW IND O RING REPL 80 0131154 CORD WRAP 81 2108722 PISTON AUTOMIX REPL 82 2133501 SCREEN LINT RED 1698 REPL 83 0149867 WINDOW, CLEAR VIEW ASSY. 1699 84 0106241 OVERSEAL AUTOLOAD DRW REF 1697 85 2130213 BAFFLE & FLOAT ASSY REPL 87 2100315 BLADDER 1697 REPL 88 0159043 TANK ASSY COMP W/LINT SCN 1698 89 0105108 KNOB AUTOMIX 1697 xx 2100290 KIT-SCREWS/NUTS/BOLTS REPL xx 2102485 CLAMP-LARGE REPL xx 2102490 CLAMP SMALL.24 REPL xx 2104950 JUMPER xx 2103418 GASKET EXTRUDED .136"X32" xx 2805040 706405002 NUT HEX #10-32 REPL xx 2807030 SCREW #8PLAS X 3/4 REPL xx 2139440 TUBE VINYL 10" 1697 REPL xx 2139442 TUBE VINYL 15.5" xx 2139444 TUBE VINYL 5" 1697 REPL xx 2139446 TUBE VINYL 28" 1697 REPL xx 2139447 TUBE URETHANE 14" REPL xx 2139448 TUBE URETHANE 32" REPL xx 0105605 USERS GUIDE- 1699 / 8905
