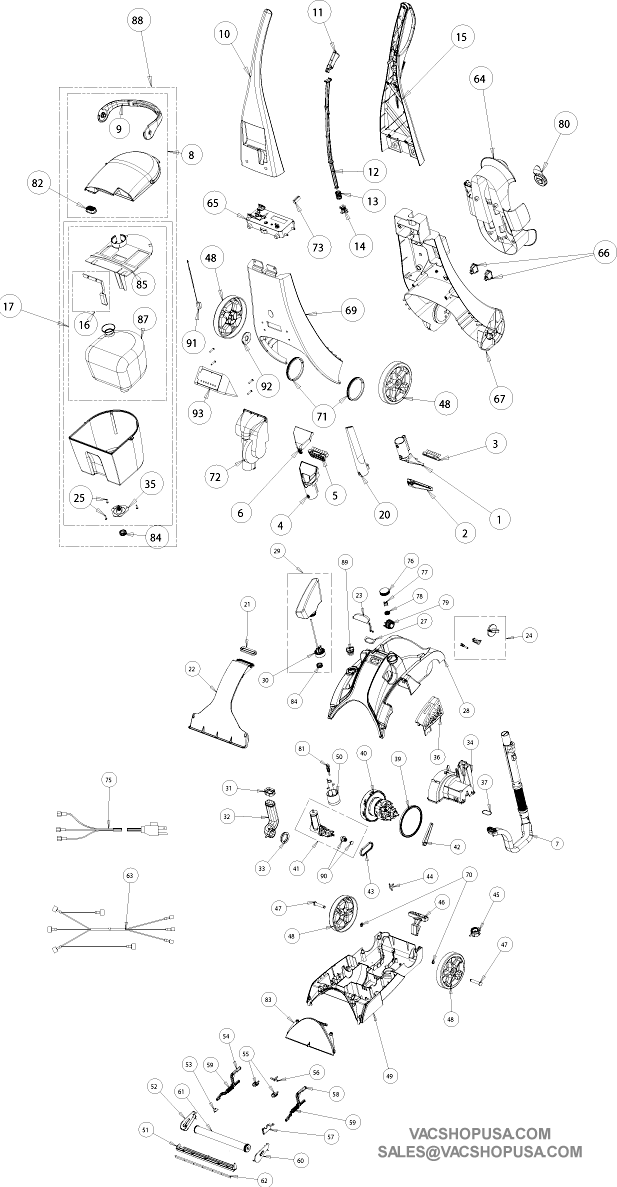

| Key |
Part
No. |
Part
Description |
|
3109202 |
4"
UPHL TOOL-GRAY- |
| 03 |
2030966 |
BRUSH-REMOVABLE,
4" TOOL |
| 04 |
2159155 |
3"
TS TOOL-GRAY |
| 05 |
2149155 |
BRUSH
FOR 3" TOOL. |
| 07 |
2153163 |
HOSE/DUCT/GRIP
ASSY 8FT |
| 08 |
0154439 |
TANK
LID W/SCN & GASKET & HAND 1698 |
| 09 |
2034435 |
HANDLE
TANK |
| 10 |
2144475 |
HANDLE-ASSY
UP FRT |
| 11 |
2139168 |
TRIGGER
1697 |
| 12 |
2147511 |
PUSH
ROD W/SPRING 1698 REPL |
| 13 |
2108422 |
SPRING
PUSH ROD |
| 14 |
2109592 |
VALVE
ASSM 1697 |
| 15 |
2144503 |
HANDLE
UP ASSY |
| 16 |
2140325 |
FLOAT
ASSEMBLY TANK |
| 17 |
2140213 |
BAFFLE
& BLADDER ASSM |
| 18 |
2149045 |
TANK&BLADDER
&AUTOLOAD RPL1698 |
| 20 |
2109148 |
CREVICE
TOOL |
| 21 |
2104052 |
SEAL
TANK INTERFACE 1697 |
| 22 |
2149863 |
WINDOW
NOZZLE W/HOOK |
| 23 |
2136988 |
DIVERTER-GRAY |
| 24 |
2145170 |
DIVERTER
ASSEM REPL |
| 25 |
2807075 |
SCREW
#6 1/2 PHL/SLT REPL |
| 27 |
2104054 |
GASKET
DIVERTER W/INST. |
| 28 |
2144933 |
HOUSING,MAINC |
| 29 |
2101785 |
BOTTLE
ASSEMBLY |
| 30 |
2101795 |
CAP
DETERGENT |
| 31 |
2104050 |
GASKET-SHORT
DUCT |
| 32 |
2103161 |
DUCT-SHORT,
MOTOR |
| 33 |
2104051 |
GASKET
MTR INTAKE |
| 34 |
2132984 |
COVER
MOTOR |
| 35 |
2107041 |
AUTO
LOAD ASSEMBLY |
| 37 |
2104053 |
O
RIN0-LONG DUCT 1697 |
| 38 |
2103160 |
DUCT-LONG,
UPHOLSTERY |
| 39 |
2104056 |
GASKET
MOTOR INNER |
| 40 |
0175972 |
MOTOR
- UDC W/BOX |
| 41 |
2107181 |
PUMP,W/LRG
PULLEY 1699 |
| 42 |
2150628 |
PUMP
BELT PACK 1699 |
| 43 |
0150621 |
BELT-BRUSH
1-PK W/INS 1698 |
| 44 |
2158001 |
T
ASSEMBLY ODD BARB |
| 45 |
2140710 |
AUTOLOAD
RECEIVER |
| 46 |
5559102 |
PEDAL-HANDLE
RELEASE |
| 47 |
2100170 |
AXLE
WHEEL |
| 48 |
2139754 |
WHEEL
1697 |
| 49 |
2140449 |
BASE-W/WINDOW
& BRUSH |
| 50 |
2100107 |
AUTOMIX
ASSY W/O WELD CAP |
| 51 |
2149131 |
BARE
FLOOR ATTACH ASSY |
| 52 |
5559121 |
PIVOT
ARM RIGHT ASSY. 1697 |
| 53 |
5559113 |
ARM
RETAINER LEFT & RIGHT |
| 54 |
2000010 |
LEVER
ELEVATOR L&R W/SPRINGS |
| 55 |
2106107 |
SPRAY
TIP 1699 REPL |
| 56 |
2102602 |
CONNECTOR
T 1697 R |
| 57 |
5559113 |
ARM
RETAINER LEFT & RIGHT |
| 58 |
2000010 |
LEVER
ELEVATOR L&R W/SPRINGS |
| 59 |
2108420 |
SPRING
ELEVATOR LEVERL |
| 60 |
5559118 |
PIVOT
ARM LEFT ASSY - 1697 |
| 61 |
2101158 |
BRUSH-FLOOR
ASSY- 5 ROW |
| 62 |
2108451 |
SQUEEGEE
BARE FL TOOL |
| 63 |
2104451 |
WIRE
HARNESS REPL |
| 64 |
2146752 |
HOSE
RACK & CORD WRAP |
| 65 |
2104503 |
HEATER
- 700 WATTS |
| 66 |
2108827 |
SWITCH
1 SPD 8 AMP VAC |
| 66 |
5559125 |
SWITCH
ROCKER RED |
| 67 |
2144301 |
HANDLE-LWR
BACK ASSY. |
| 68 |
2105603 |
LIGHT
IND REPL |
| 69 |
2144350 |
HANDLE
LWR FRT ASSY |
| 70 |
2106215 |
E
RING WHEEL AXLE REPL |
| 71 |
2101256 |
BUSHING
HANDLE 1697 |
| 72 |
2101197 |
TUBRO
BRUSH CLEAR BLUE |
| 73 |
2108550 |
STABILIZER
HEATER 1697 |
| 75 |
2112850 |
CORD
- 33 REPL |
| 76 |
5556503 |
FLOW
INDICATOR ASSY - |
| 77 |
5556503 |
FLOW
INDICATOR ASSY - |
| 78 |
5556503 |
FLOW
INDICATOR ASSY - |
| 79 |
2100489 |
BASE
FLOW IND O RING |
| 80 |
2131154 |
CORD
RELEASE |
| 81 |
2108722 |
PISTON
AUTOMIX |
| 82 |
2133501 |
SCREEN
LINT RED 1698 |
| 83 |
2149867 |
CLEARVIEW
WINDOW < 02120 |
| 84 |
2106241 |
OVERSEAL
AUTOLOAD |
| 85 |
2130213 |
BAFFLE
& FLOAT ASSY |
| 87 |
2100315 |
BLADDER
1697 |
| 88 |
0159043 |
TANK
ASSY COMP W/LINT 1698 |
| 89 |
2105108 |
KNOB
- AUTOMIX |
| 91 |
2101071 |
SENSOR-SPEED
INDICATOR |
| 92 |
2101075 |
MAGNET-SENSOR |
| 93 |
2144925 |
CIRCUIT
BOARD HSG ASSY. |
| xx |
2100290 |
KIT-SCREWS/NUTS/BOLTS |
| xx |
2102485 |
CLAMP-LARGE |
| xx |
2102490 |
CLAMP
SMALL.24 |
| xx |
2103418 |
GASKET
EXTRUDED .136"X32" |
| xx |
2104950 |
JUMPER |
| xx |
2109601 |
WASHER
- HOLD DOWN |
| xx |
2139440 |
TUBE
VINYL 10" 1697 |
| xx |
2139442 |
TUBE
VINYL 15.5" |
| xx |
2139444 |
TUBE
VINYL 5" 1697 |
| xx |
2139446 |
TUBE
VINYL 28" 1697 |
| xx |
2139447 |
TUBE
URETHANE 14" |
| xx |
2139448 |
TUBE
URETHANE 32" |
| xx |
5557030 |
SCREW
- #8PLAS X 3/4 6PCK |
