Hoover Parts Lookup

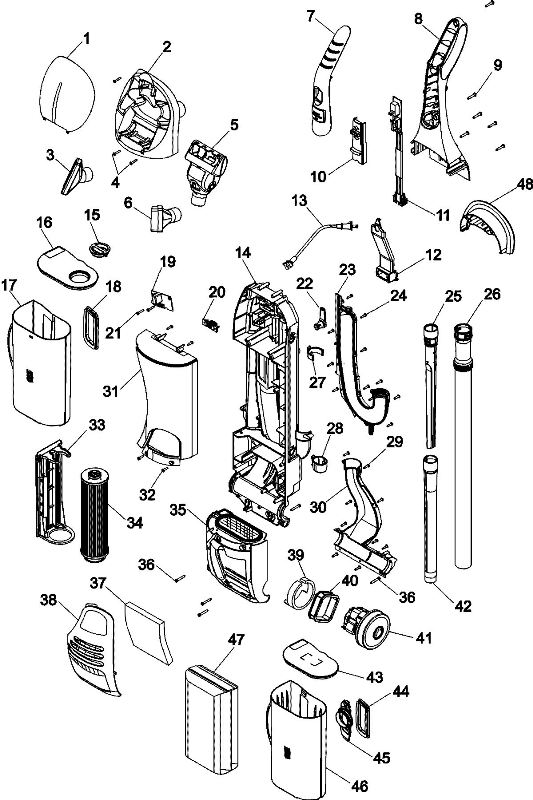

Parts for MAY TAG Model "U8181900", Image Section "02 - UPPER ASSEMBLY"

Item

Part Number

Part Description

Alt Part

Series

Qty

1

37257281

TOOL DOOR-CP

10

1

2

36433199

TOOL HOLDER WfTHT-AHM

10

1

3

38614044,

FURNITURE NOZZLE-AGR

10

1

4

21447072

SCREW

10

3

5

49129027

TURBINE HAND TOOL

10

1

6

43414195

DUSTING BRUSH ASSEMBL Y-AGR

10

1

7

92001057

LENS - HANDLE GRIP

10

1

8

92001052

UPPER HANDLE ASSEMBL Y

10

1

9

214472ED

SCREW-SELF TAPPING-C

10

6

10

38421112

SWITCH BUTION-AGR

10

1

11

27854033

SWITCH/CIRCUIT BOARD

10

1

12

36911006

CONNECTOR MOUNT

10

1

13

46383342

ATIACHMENT CORD ASSEM-31 FT

10

1

14

92001053

UPPER HOUSING ASSEMBLY

10

1

36433196

HOSE HLDER UPPER-AGR

10

1

15

38411013

KNOB CART FIL T-AG

10

1

16

37249055

DIRT CUP L1D-AGR

10

1

17

38775094

DIRT CUP SERVICE

10

1

18

38783029

INLET SEAL-DIRT CUP-AG

10

1

19

91001035

EDF PRINTED CIRCUIT BOARD

10

1

20

91001034

RECEPTACLE/HARNESS

10

1

21

21447072

SCREW

10

2

22

92001030

CORD WRAP-AGR

10

1

23

92001064

MICROPHONE/DIRT DUCT ASSEMBLY

10

1

24

21447242

SCREW-SELF TAPPING

10

10

25

38617031

CREVICE TOOL-LONG-AGR

10

1

26

43431227

HOSE ASSEM COMP-AG/AGR

10

1

27

36433197

WAND HOLDER-UPPER-AGR

10

1

28

36433194

WAND HOLDER-LOWER-AGR

10

1

29

21447242

SCREW-SELF TAPPING

10

9

30

38683018

TRUNNION DUCT-AGR

10

1

31

92001059

FRONT PANEL - AHM

10

1

32

21447242

SCREW-SELF TAPPING

10

4

33

91001048

PRE-FILTER ASSEMBL Y-AGR

10

1

34

40140201

CARTRIDGE FILTER

10

1

35

37196178

MOTOR COVER-AHM

10

1

36

21447230

SCREW-SELF TAPPING-F

10

6

37

38766028

FINAL FILTER

93002017

10

1

38

38769017

FINAL FILTER DOOR-AAN

10

1

39

34163016

MUFFLER FOAM

10

1

40

36322036

MOTOR MOUNT-MIDDLE

10

1

41

93001747

MOTOR ASSEMBLY

10

1

38785018

MOTOR FACE SEAL-AG

10

1

91001027

THERMAL PROTECTOR

10

1

42

38634078

EXTENSION TUBE-AG

10

1

43

37249065

BAG CONTAINER L1D-AGR

10

1

44

38783035

INLET SEAL-BAG CONT-BZ

10

1

45

36424005

BAG ADAPTER-AG

10

1

46

37256005

BAG CONTAINER-AFX

10

1

7/13/2008

Parts List Page 1

Hoover Parts Lookup

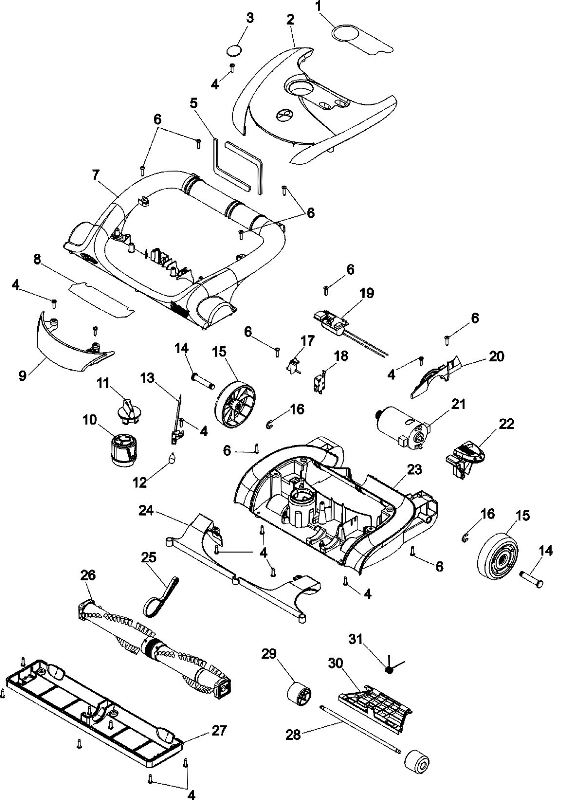

Parts for MAY TAG Model "U8181900", Image Section "01 - FOOT ASSEMBLY"

Item

Part Number

Part Description

Alt Part

Series

Qty

1

91001038

EDF NAMEPLATE

10

1

2

92001047

HOOD-AHM

10

1

3

51661020

MEDALLION

10

1

4

017001FW

SCREW

10

16

5

91001030

TRUNNION SEAL

10

2

6

21447242

SCREW-SELF TAPPING

10

9

7

92001042

AGITATOR HOUSING

10

1

8

91001031

REFLECTOR

10

1

9

92001051

LENS

10

1

10

92001049

HEIGHT ADJUSTMENT KNOB

10

1

11

92001050

HEIGHT ADJUSTMENT CAM

10

1

12

27313107

BULB

10

1

13

47173037

LAMP SOCKET

10

1

14

32434014

REAR AXLE-AAX

10

2

15

92001031

REAR WHEEL-WITREAD-AEA/AG

92001287

10

2

16

160017--

LOCK RING

10

2

17

36913031

SWITCH BRACKET-ABE

10

1

18

91001026

SWITCH

10

1

19

91001036

DISPLAY BRIDGE PCB

10

1

20

92001040

MOTOR BRACKET

10

1

21

93001746

AGITATOR MOTOR

10

1

22

38434026

HANDLE RELEASE LEVER-AG

10

1

23

92001041

MAIN BODY

10

1

24

92001074

NOZZLE L1NER-CP

10

1

25

91001028

TIMING BELT

10

1

26

93001748

AGITATOR ASSEMBLY

10

1

27

92001039

FURNITURE GUARDI BonOM PLATE

10

1

28

32541007

WHEEL SHAFT-AY

10

1

29

38521009

FRONT WHEEL-AG

10

2

30

91001066

WHEEL CARRIAGE ASSEMBLY

10

1

31

38355010

TORSION SPRING

10

1

NI

91001033

HARNESS, WIRE FOOT

10

1

56511C34

MANUAL, OWNERS

56511C52

10

1
