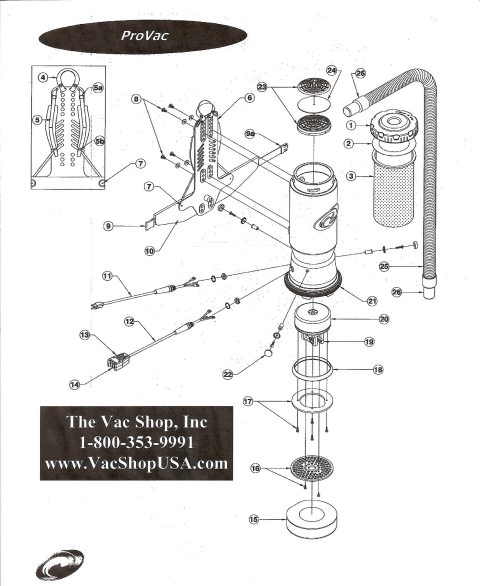

Use this part schematic to look up the price of this Genuine ProTeam ProVac pv100 part or order online please click on the part number. If the number is not an active link that is highlighted in Blue please email us at chicago@thevacshop.com and we can add it to our on line database. All part numbers for the Pro Team ProVac and Aviation Vac are listed below the part schematic.



Complete Kit Part # 100727

bulletEach Kit Contains:
bullet 100107 11" Crevice Tool
bullet 100110 3" Dust Brush with Reducer
bullet 100115 5" Upholstery Tool
bullet 100147 14" Carpet Floor Tool w/Scallops
bullet 100623 14" Hard Floor Tool w/Nylon Brush
bullet 101338 56" Two-Piece, Two-Bend Aluminum Wand w/Button Lock



Index

No.

Product Name

Qty

PT-BPTN COMMERCIAL 1 1/2" TURBO POWER BEATER BAR FLOOR NOZZLE

1

104273

Twist Cap (Black)

1 ea.

2

100431

496 Sq. In. Reusable Pro Vac Micro Filter Bags 10/pk

3

100564

Micro Cloth Filter

1 ea.

4

101737

Carry Handle w/Rivet and Washer Set

1 set

5

100356

Shoulder Strap Assembly: (includes: #5a,5b)

5a

100358

Shoulder Strap Plastic Adjustment (Top) 1 ea.

5b

100357

Shoulder Strap Plastic Adjustment



(Bottom)

1 ea.

6

105046

Backplate (includes: #7)

1 ea.

7

100375

Barrel Nut Connection Set for



Backplate (Replacement)

1 set

8

100716

Backplate (Black) Connection Set:





4 Screws w/Washers

1 set

9

103963

Waist Belt Keeper

1 ea.

9a

100364

Waist Belt Latch

1 ea.

10

100359

Waist Belt (includes: #9,9a)

1 ea.



100354

Strap Assembly Complete (includes: #S,Sa,Sb,9,9a,1 0)



103166

Back plate System Complete





(includes: #4,S,Sa,Sb,6, 7,S,9,9a, 10)

1 set

11

100641

Power Cord (18" 1613) Assembly

1 set

12

101610

Switch Cord Assembly Complete (includes: #12,13,14)



101714

Switch Cord w/Crimps

1 ea.



101715

Switch Cord w/Crimps (AviationVac)

1 ea.



101717

Switch Cord Assembly Complete





w/Switch and Box (AviationVac)

1 ea.

13

101472

Switch Box w/Velcro and Screws

1 set

14

100743

On/Off Switch

1 ea.

15

100698

Sound Muffler

1 ea.

16

100352

Plastic Air Diffuser w/Screw Set: 2 Screws 1 set

17

100335

Motor Compression Ring w/Screws

1 set



100378

Compression Ring Saew Set: 4 Screws

1 set

18

100014

Tetraseal

1 ea.

19

105697

Carbon Brush Set for ProVac Motor  (Domel Motor only)

1 set



100424

Carbon Brush Set for ProVac Motor (Ametek Motor only)

100173

Carbon Brush Set for 400 Hz Motor (Aviation Vac)

1 set

20

105720

Motor/Fan (120 V) w/Crimps for ProVac 1 ea.



100420

Motor/Fan (220 V) w/Crimps for ProVac 1 ea.



100171

Motor/Fan w/Rectifier and Crimps (400Hz) (proVac AviationVac)



100174

Motor Rectifier (proVac Aviation Vac)

1 ea.



100379

Motor Ground Connection and Wire





Clamp Set w/Screws

1 set



100380

Motor Crimp Set: S Female, 3 Male,

1 set





Ground Crimp Connector

21

100586

Bottom Bumper

1 ea.

22

100368

Motor Mounting System Set:





3 Well Nuts, 3 Bolts, 3 Washers, 3 Covers

1 set

23

100030

Dome Filter w/Foam Media

1 ea.

24

100343

Foam Filter Media for Dome Filter

1 ea.



101220

High Filtration Disc (Optional)

2/pk

25

100505

Static-Dissipating Hose (Black) w/Cuffs 1 1/2"



103237

Static-Dissipating Hose (Aviation Vac)





1 1/4" (Black)

1 ea.

26

100694

Replacement Swivel Cuff (Black) 1 '12"

1 ea.



102715

Replacement Double Swivel Elbow





Cuff 1 1/2"  (Black) (Aviation Vac)

1 ea.



103279

Replacement Swivel Cuff 1'/,' (Black)(Aviation Vac)

1 ea.



101678

5O' Extension Cord (Not Shown)

1 ea.
