To look up the
price of this Genuine part or order online please enter the
part number in the search field below.
|
|
|
|
|
 |
|
Hoover Parts Lookup |
|
|
|
|
|
|
|

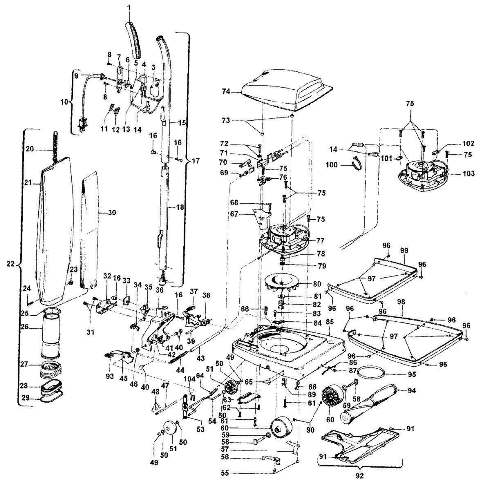

Parts for MAYTAG Model "U4393---", Image Section "03 - HANDLE,
MAINBODY, OUTERBAG, HOOD" |
|
Item |
|
Part Number |
Part Description |
Alt Part |
|
|
|
|
|
|
|
1 |
|
023458JM |
HANDLE GRIP |
|
|
|
|
023458LY |
HANDLE GRIP |
|
|
3 |
|
012272-- |
SWITCH INSULATOR & B |
|
|
|
|
37214070 |
SWITCH CASE-C1069 |
|
|
4 |
|
281770KD |
SWITCH - S2095 |
|
|
|
|
012971-- |
SWITCH - 70 - 2110 |
|
|
5 |
|
161935JM |
TUBING |
|
|
6 |
|
34253010 |
CORD RETAINER-CONVER |
|
|
|
|
012988AW |
RETAINER |
|
|
7 |
|
023138AW |
SWITCH COVER PLATE-1 |
|
|
|
|
37258022 |
SWITCH COVER-JM-U435 |
|
|
8 |
|
21465314 |
SCREW |
|
|
9 |
|
31969AG- |
CORD PROTECTOR |
|
|
|
|
36216002 |
CORD PROTECTOR-AG-U7 |
|
|
10 |
|
46363195 |
ATTACH. CORD-AG |
|
|
|
|
46383231 |
ATTACHMENT CORD ASSM |
46383068 |
|
11 |
|
012260-- |
STRAIN RELIEF BODY |
|
|
12 |
|
012261-- |
STRAIN RELIEF LOCK |
|
|
13 |
|
27666702 |
TERMINAL |
|
|
|
|
160356-- |
TERMINAL |
|
|
14 |
|
012227-- |
TERMINALS-0513 |
|
|
15 |
|
48642049 |
HANDLE-UPPER HALF-KH |
|
|
|
|
019985VN |
HANDLE-UPPER HALF-U4 |
|
|
|
|
035346VN |
HANDLE-UPPER HALF - |
|
|
|
|
48642013 |
HANDLE-UPPER HALF-U4 |
|
|
|
|
48642014 |
HANDLE-UPPER HALF-JR |
|
|
|
|
48642024 |
HANDLE-UPPER HALF-JX |
|
|
|
|
48642044 |
HANDLE-UPPER HALF-U4 |
|
|
|
|
48655208 |
HANDLE ASSM COMP-AAP |
|
|
|
|
48642039 |
HANDLE-UPPER HALF-SW |
|
|
16 |
|
32277008 |
HANDLE CLAMP NUT |
|
|
|
|
21631301 |
HANDLE CLAMP BOLT |
|
|
|
|
21631302 |
HANDLE BOLT-U7047/45 |
|
|
|
|
048294AW |
HANDLE BOLT & NUT |
|
|
17 |
|
48655197 |
HANDLE ASSM COMP-JM/ |
|
|
|
|
019984JR |
HANDLE COMPLETE-U434 |
|
|
|
|
019984JM |
HANDLE COMPLETE-U434 |
|
|
|
|
48655067 |
HANDLE COMPLETE-U416 |
|
|
|
|
019984VN |
HANDLE COMP |
|
|
|
|
48655096 |
HANDLE COMPLETE-LU-U |
|
|
|
|
48655066 |
HANDLE COMP-JM/KH-U4 |
|
|
|
|
48655208 |
HANDLE ASSM COMP-AAP |
|
|
|
|
011969VN |
HANDLE COMP |
|
|
|
|
019984HR |
HANDLE COMPLETE-U434 |
|
|
|
|
011969JM |
HANDLE COMPLETE |
|
|
|
|
019984KZ |
HANDLE COMPLETE-U419 |
|
|
|
|
019638JM |
HANDLE COMPLETE-U412 |
|
|
|
|
48655069 |
HANDLE COMPLETE |
|
|
18 |
|
48631140 |
HANDLE - LOWER HALF |
|
|
|
|
48631132 |
LOWER HANDLE-AAC |
|
|
19 |
|
46326110 |
HANDLE RECEPTACLE AS |
|
|
|
|
034484JM |
HANDLE RECEPTACLE AS |
|
|
20 |
|
38335006 |
SUPPOR SPRING |
|
|
|
|
38336014 |
SUPPORT SPRING |
|
|
|
|
044475AW |
BAG SUPPORT SPRING |
|
|
21 |
|
43677106 |
OUTER BAG-U4387 |
|
|
|
|
43677321 |
OUTER BAG-COM-BTM FI |
|
|
|
|
43677260 |
OUTER BAG JM/MH/LE-U |
|
|
|
|
43677258 |
OUTER BAG JR/JY/KY-U |
|
|
|
|
43677156 |
OUTER BAG-LD-U4377 |
|
|
|
|
43677322 |
OUTER BAG-COM-TOP FI |
|
|
|
|
43677269 |
OUTER BAG-U4367 |
|
|
|
|
43677118 |
OUTER BAG-RB/KT/KS-U |
|
|
|
|
43677083 |
OUTER BAG-KS/KT-U439 |
|
|
|
|
43686037 |
CLOTH BAG-AAK/AAP-U4 |
|
|
22 |
|
43678153 |
OUTER BAG COMP U4375 |
|
|
|
|
43678284 |
OUTER BAG COMP-KS/KT |
|
|
|
|
43678162 |
OUTER BAG COMPLETE-U |
|
|
|
|
43678340 |
CLOTH BAG COMP-AAK/A |
|
|
|
|
43678333 |
OUTER BAG COMP-DECAD |
|
|
|
|
43678331 |
OUTER BAG COMP-COM-B |
|
|
|
|
43678330 |
OUTER BAG COMP-COM-T |
|
|
23 |
|
015854EF |
NUT |
|
|
24 |
|
21765159 |
SCREW |
|
|
25 |
|
046550AG |
BELT-ALL LIGHTWEIGHT |
|
|
26 |
|
38657004 |
TOP FILL TUBE |
|
|
|
|
161889-- |
SUPPORT TUBE |
|
|
27 |
|
011064JM |
BELLOWS-CONVERTIBLE |
|
|
|
|
38673009 |
BELLOWS-JM |
|
|
28 |
|
41424011 |
BAG FLANGE W/SEALANT |
|
|
29 |
|
047454-- |
BAG RING GASKET 65 |
|
|
30 |
|
4010003C |
BOT FILL UPR BAG - 4-PK |
|
|
|
|
4010001A |
TOP FILL UPR BAG - 3-PK |
|
|
31 |
|
21481752 |
SCREW |
|
|
32 |
|
034192-- |
BAIL GRIP 65 |
|
|
33 |
|
35463002 |
HANDLE RETAINER PLAT |
|
|
34 |
|
39442030 |
CORD CLIP-AAP-U4519 |
|
|
35 |
|
023296AG |
SOCKET PLUG |
|
|
36 |
|
41416032 |
BAIL-AAC |
|
|
|
|
41416030 |
BAIL-JM |
|
|
37 |
|
38426071 |
FOOT PAD-DS |
|
|
|
|
38426080 |
FOOT PAD-AG -C1E03 |
|
|
38 |
|
43137047 |
HDL CONT LEVER-AG |
|
|
|
|
43137036 |
HDL CONT LEVER-JM |
|
|
39 |
|
047450AY |
PIVOT PIN |
|
|
40 |
|
011735-- |
HANDLE CONT ROL PIN |
12002663 |
|
41 |
|
048409FW |
SPRING |
|
|
42 |
|
019907-- |
BAG FLANGE CLAMP LEVER |
|
|
43 |
|
31727023 |
CORD COVER TUBING-JM |
|
|
44 |
|
38313023 |
MOTOR LEAD SPRING |
|
|
45 |
|
38452046 |
NOZZ ADJ LEVER-AG-U4 |
|
|
|
|
38452051 |
NOZ ADJ LEVER-AG-4 P |
|
|
|
|
161511AY |
NOZ ADJ LEVER |
|
|
46 |
|
161507-- |
WASHER |
|
|
47 |
|
161509AY |
BAIL SHAFT |
|
|
48 |
|
013730-- |
LOCK RING |
|
|
49 |
|
32182001 |
WHEEL RETAINER |
|
|
|
|
017207AZ |
LOCK RING-1060 |
|
|
50 |
|
21312772 |
WASHER |
|
|
51 |
|
38521016 |
REAR WHEEL-AG |
|
|
53 |
|
161514-- |
CAM FOLLOWER ASSEM |
|
|
|
|
43263003 |
CAM FOLLOWER-PLASTIC |
|
|
|
|
43263005 |
CAM FOLLOWER-PLASTIC |
|
|
|
|
34233005 |
FIXED POSITION LINK- |
|
|
54 |
|
33141011 |
REAR WHEEL SHAFT COM |
33152003 |
|
|
|
33152003 |
REAR WHEEL SHAFT |
|
|
55 |
|
21447203 |
SCREW-S2095/97/99 |
|
|
|
|
012456-- |
RIVET |
|
|
56 |
|
35446003 |
BOTTOM PLATE LATCH-R |
|
|
|
|
36153006 |
LATCH-C1K01 |
|
|
57 |
|
36153006 |
LATCH-C1K01 |
|
|
|
|
35446005 |
BOTTOM PLATE LATCH L |
|
|
58 |
|
047457AY |
FRONTWHEEL SHAFT |
|
|
59 |
|
21312772 |
WASHER |
|
|
60 |
|
38522013 |
CARRIER WHEEL-AG |
|
|
|
|
34791AG- |
FRONT WHEEL |
034791AG |
|
61 |
|
016903-- |
SCREW-SELF TAPPING-1 |
|
|
|
|
21447020 |
SCREW |
|
|
62 |
|
21447009 |
SCREW |
|
|
63 |
|
35434040 |
AXLE/BAG FLANGE RETA |
|
|
64 |
|
161513-- |
SPRING |
|
|
65 |
|
048422-- |
RIVET |
|
|
66 |
|
012559FW |
SPRING-1060 |
|
|
67 |
|
164684-- |
INSULATION SHIELD |
|
|
68 |
|
161535-- |
SCREW |
|
|
69 |
|
014197-- |
TERMINAL |
|
|
70 |
|
38452028 |
SWITCH ACTUATOR |
|
|
71 |
|
019513AG |
SWITCH-U4313 |
|
|
72 |
|
23254001 |
SCREW ASSM |
|
|
73 |
|
016125AY |
CAPSERT-1060 |
|
|
74 |
|
42251217 |
HOOD/LENS-LU-U4315 |
|
|
|
|
42251108 |
HOOD & LENS ASSEM - |
|
|
|
|
42251219 |
HOOD/LENS-KH-U4349 |
|
|
|
|
42251078 |
HOOD-SW-U4189 |
|
|
|
|
167364JV |
MOTOR HOOD-U4325 |
|
|
|
|
167364JM |
HOOD-U4A01 |
|
|
|
|
42251229 |
HOOD-HR |
|
|
|
|
42251230 |
HOOD-JM-U4341 |
|
|
|
|
42251144 |
HOOD & LENS-VN-U4W03 |
|
|
|
|
162719JM |
MOTOR HOOD |
|
|
|
|
42251178 |
HOOD & LENS ASSEM-JJ |
|
|
|
|
42251207 |
HOOD-MH |
|
|
|
|
161649JM |
MOTOR HOOD |
|
|
|
|
42251012 |
HOOD-CD U4187 |
|
|
75 |
|
21447013 |
SCREW |
|
|
|
|
21447020 |
SCREW |
|
|
76 |
|
34771001 |
SWITCH BRACKET |
|
|
77 |
|
43574045 |
MOTOR COMPLETE |
|
|
|
|
43574140 |
MOTOR |
|
|
|
|
43574190 |
MOTOR - U4377-935 |
|
|
78 |
|
163059-- |
FAN SPACER-CTV |
|
|
|
|
31731002 |
FAN SPACER-8MM |
|
|
|
|
31731006 |
SPACER-U4405 |
|
|
79 |
|
166563-- |
WASHER |
|
|
80 |
|
38755011 |
FAN |
|
|
81 |
|
31162004 |
WASHER-HEAT INSULATI |
|
|
82 |
|
38532009 |
MOTOR PULLEY-HEAT IN |
38532005 |
|
83 |
|
21447007 |
SCREW |
|
|
|
|
21447003 |
SCREW |
|
|
84 |
|
34665007 |
PIVOT PIN RETAINER |
|
|
85 |
|
42242064 |
MAIN BODY ASSM-COMMO |
42242269 |
|
86 |
|
012138FW |
BOTTOM PLATE SPRING |
|
|
87 |
|
012503EF |
RIVET-SEMI TUBULAR |
|
|
88 |
|
34784021 |
AGITATOR RETAINING S |
|
|
89 |
|
21312781 |
SUPPORT WASHER-UPRIG |
|
|
|
|
34355002 |
AGITATOR SUPPORT PLA |
|
|
90 |
|
013730-- |
LOCK RING |
|
|
91 |
|
34111001 |
SUPPORT PAD |
|
|
92 |
|
42246038 |
BOTTOM PLATE |
|
|
|
|
42246008 |
BOTTOM PLATE COMPLET |
|
|
|
|
37245081 |
BOTTOM PLATE - PLAST |
|
|
93 |
|
38426072 |
FOOT PAD-JM |
|
|
|
|
38426071 |
FOOT PAD-DS |
|
|
94 |
|
41435005 |
AGITATOR ASSEM COMP- |
48414003 |
|
|
|
48414021 |
AGITATOR ASSEMBLY CO |
|
|
|
|
48414006 |
AGITATOR ASSEMBLY CO |
48414003 |
|
95 |
|
049258AG |
BELT-CONVERTIBLE |
|
|
96 |
|
12997AW- |
RIVET |
012997AW |
|
97 |
|
W10124350 |
NOT REQUIRED PART OR SEE NOTE |
|
|
98 |
|
016974JM |
FURNITURE GUARD |
|
|
99 |
|
017458JM |
FURNITURE GUARD |
|
|
100 |
|
27479307 |
CABLE TIE |
|
|
101 |
|
34312011 |
RETAINER |
|
|
102 |
|
045517-- |
WIRE HOLDER |
|
|
103 |
|
43574133 |
MOTOR |
|
|
|
|
43574161 |
MOTOR-U4403 |
|
|
104 |
|
34252005 |
YOKE |
|
|
105 |
|
56511327 |
OWNER MANUAL-U4519/2 |
|
|
|
|
58343025 |
FRONT SUPPORT-C1067 |
|
|
|
|
56511246 |
OWNER MANUAL- U4395/ |
|
|
|
|
68564063 |
SILMATE RTV-1473 SEA |
|
|
|
|
56511224 |
OWNER MANUAL - U4119 |
|
|
|
|
58366012 |
REAR SUPPORT - U4391 |
|
|
|
|
56511132 |
OWNER MANUAL - U4303 |
|
|
|
|
56511085 |
OWNER MANUAL-U4119 |
|
|
|
|
017001FW |
SCREW |
|
|
|
|
38421012 |
SWITCH BUTTON |
|
|
|
|
36912004 |
LAMP SOCKET-L.V. |
|
|
|
|
27725506 |
RECEPTACLE TERMINAL- |
|
|
|
|
27313101 |
LAMP |
|
|
|
|
162954CA |
LENS |
|
|
|
|
39383074 |
DIRT FINDER LENS |
162954CA |
|
|
