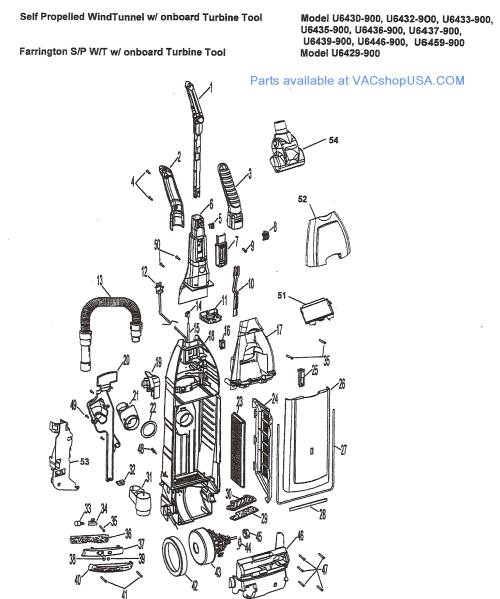

The below Hoover Schematic is for the following Hoover
Windtunnel Models
U6429-900, U6430-900, U6432-900, U6433-900, U6436-900, U6446-900, U6459-900,
 |
To look up the
price of this Genuine part or order online please enter the
part number in the search field below.
|
|
|
|
|
Self Propelled WindTunnel wI onboard Turbine Tool |
Model U6430-900, U6432-900, U6433-900, |
| |
|
U6436-900 |
|
U6446-900, U6459-900 |
|
Farrington SIP WIT wI onboard Turbine Tool |
|
Model U6429-900 |
|
Ref. |
Part |
Description |
Ref. |
Part |
Description |
|
1 |
38512001 |
Grip Rod |
38. |
27352031 |
Snap in Lens - Green (Models w/EDF) |
|
2. |
39454008 |
Handle Grip - Back |
|
|
|
|
3. |
39454062 |
Handle Grip - Front (Inc. item 5) |
39. |
27352030 |
Snap in Lens Red (Models w/EDF) |
|
4. |
21447228 |
Screw (2) |
|
|
|
|
5. |
36142002 |
Drive Control Pin |
40. |
39383100 |
Lens |
|
6. |
39466040 |
Upper Handle (Ine. items 7, 8. 10) |
41 . |
21447228 |
Screw |
|
7. |
37258119 |
+ Switch Rod Pocket |
42 |
36322035 |
Motor Mount - Large |
|
8. |
38421098 |
Switch Button |
43. |
43576191 |
Motor Assembly |
|
9. |
21447242 |
Screw |
|
43566016 |
Fan Assembly |
|
10. |
38458051 |
Switch Rod |
|
41311017 |
Motor Brush Assembly (2 required) |
|
11. |
36923003 |
Rod Guide |
44. |
28382093 |
Thermal Protector |
|
12. |
46383331 |
Attachment Cord Assembly - 35 ft. |
45. |
36322030 |
Motor Mount· Small |
|
13. |
43434031 |
Hose Assembly |
46. |
37195107 |
Motor Cover |
|
14. |
43211019 |
Control Cable |
47. |
21447230 |
Screw |
|
15. |
66661205 |
Control Cable Tube |
48. |
23149001 |
Tapping Screw and Washer Assembly |
|
16. |
28161067 |
Switch |
|
|
|
|
17. |
36433153 |
Tool Holder |
49. |
21447242 |
Screw |
|
18. |
37255028 |
Bag Hsg. (Inc. items 15, 16.48) |
50. |
21447072 |
Handle Screws |
|
19. |
36433136 |
Hose Holder - Upper |
51 |
36433155 |
Tool Holder Cap |
|
20. |
37255010 |
Rear Cover |
52 |
37257250 |
Tool Door |
|
21. |
47823004 |
EDF Duct I Mic Assembly |
53 |
36433154 |
Tool Rack - Rear |
|
22. |
31178017 |
Hose Connector Gasket |
54 |
40200013 |
Turbine Powered Hand Tool - |
|
23. |
40120101 |
Final Filter - HEPA
43613022 |
|
|
|
|
24. |
38769004 |
Final Filter Grille |
|
49129014 |
PHT - (P.357) U6429-900 models before 12/02. Models after 12/02 used
40200013 |
|
25. |
51151010 |
Bag Indicator |
|
|
26. |
Note: All bag doors include Items 25,27,28 |
|
37254169 |
Bag Door - AEF - U6446-900 |
|
37254167 |
Bag Door - ABM -U6430-900. |
Items Not Illustrated |
|
|
|
|
3944201
P |
Cord Wrap - Upper |
|
37254188 |
Bag Door - ACX - U6432-900, |
4010100Y
|
Throw Away Bag - 3 pk. |
|
|
|
34131019
|
Wire Opening Plug |
|
37254180 |
Bag Door· AG - U6459-900 |
21447242
|
Screw for Hose Holder (Item 19) |
|
37254192 |
Bag Door-AFE-U6429-900 - before 12/02 |
36131101
|
Control Cable Support |
|
|
|
49811074
|
Lead Wire White -(From cord to motor) |
|
37254214 |
Bag Door - AA Y - U6429-9oo after 12/02 |
36215028
|
Cord Protector |
|
|
|
36436014
|
Handle Sleeve (Inc. with item 6) |
|
37254219 |
Bag Door - AEX - U6433-9OO |
|
| |
37254217 |
Bag Door - AEF - |
43414162 |
Dusting Brush Assembly |
| |
37254227 |
Bag Door - AG - U6436-900 |
3861401E |
Fumiture Nozzle |
|
27. |
38781057 |
Bag Door Gasket |
38617027 |
Crevice Tool |
|
28. |
34123050 |
Bag Door Gasket - Bottom |
38634078 |
Extension Tube (2) |
|
29. |
38765019 |
Secondary Filter |
43434042 |
Hose Assembly -Extra - 20 inch stretch
U6446-900. U6459-900 |
|
30. |
36426034 |
Secondary Filter Retainer |
|
31. |
41426150 |
Wand I Hose Holder (Inc. hose) |
|
|
|
32. |
34131005 |
Wire Opening Seal |
Packaging |
|
|
33. |
27313101 |
Bulb |
|
|
|
34. |
47173028 |
Wiring Harness - U6433-900, |
58186039 |
+ Carton - wlo Pomt of Sale Label _ |
| |
|
U6446-900, U6459-9QO |
|
U6446-900 |
| |
47173027 |
Wiring Harness - U6429-900, U6430-900, |
|
|
|
35. |
21447072 |
* Screw |
|
|
|
36. |
46851031 |
PCB - U6433-900. U6446-900.
U6459-900 |
|
|
|
37. |
37944011 |
EDF Cover - U6433-900, |
|
|
| |
|
|
|
|
| |
|
U6446-900, |
|
|
| |
37944012 |
Panel - U6430-900,U6432-900 U6436-900 |
|
|
