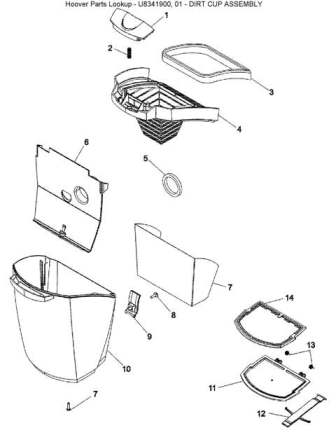

Hoover Parts Lookup |
|
|
|
|
|
|
|
Parts for MAYTAG Model "U8341900", Image Section "01 - DIRT CUP
ASSEMBLY" |
|
Item |
|
Part Number |
Part Description |
|
|
|
|
|
|
|
|
1 |
|
91001115 |
DIRT CUP LATCH |
|
|
2 |
|
90001037 |
SPRING |
|
|
3 |
|
92001288 |
GASKET LID-DIRT CUP |
|
|
4 |
|
91001129 |
DIRT CUP LID-AKK |
|
|
5 |
|
91001147 |
GASKETS |
|
|
6 |
|
91001144 |
DIRT CUP PARTITION |
|
|
7 |
|
92001289 |
INSERT-DIRT CUP |
|
|
8 |
|
21447242 |
SCREW-SELF TAPPING |
|
|
9 |
|
91001135 |
DIRT CUP DR ACT-AHB |
|
|
10 |
|
91001145 |
DIRT CUP - BZ |
|
|
11 |
|
91001130 |
DIRT CUP DOOR - M |
|
|
12 |
|
91001114 |
DIRT CP DR LATCH-AG |
|
|
13 |
|
91001176 |
TORSION SPRING |
|
|
14 |
|
91001149 |
DIRT CP DR GASKET |
|
|
 |
|
Hoover Parts Lookup |
|
|
|
|
|
|
|
|
Parts for MAYTAG Model "U8341900", Image Section "02 - FILTER
ASSEMBLY" |
|
Item |
|
Part Number |
Part Description |
|
|
|
|
|
|
|
|
|
|
1 |
|
21447242 |
SCREW-SELF TAPPING |
|
|
|
2 |
|
91001163 |
ON/OFF SWITCH |
|
|
|
3 |
|
91001132 |
CARRY HANDLE CO |
|
|
|
4 |
|
017001FW |
SCREW |
|
|
|
5 |
|
90001353 |
POWER BUTTON |
|
|
|
6 |
|
91001147 |
GASKETS |
|
|
|
7 |
|
12002818 |
KIT, FILTER U8341 |
|
|
|
8 |
|
91001171 |
THRUST WASHER |
|
|
|
9 |
|
91001172 |
FILTER GASKET |
|
|
|
10 |
|
12002818 |
KIT, FILTER U8341 |
|
|
|
11 |
|
91001173 |
FILTER SPRING GASKET |
|
|
|
12 |
|
91001174 |
FILTER HSG COVER-AKK |
|
|
|
13 |
|
91001109 |
PRIMARY FILTER TRANS |
|
|
|
14 |
|
91001143 |
FILTER PARTITION |
|
|
|
15 |
|
91001155 |
FILTER FLICKER |
|
|
|
16 |
|
91001175 |
TORSION SPRING-FLICKER |
|
|
|
17 |
|
91001140 |
CLEAN AIR DUCT |
|
|
|
 |
|

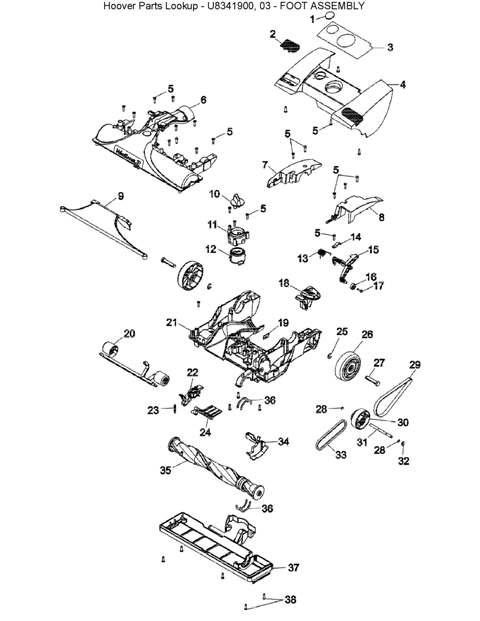

Hoover Parts Lookup |
|
|
|
|
|
|
|
|
Parts for MAYTAG Model "U8341900", Image Section "03 - FOOT
ASSEMBLY" |
|
Item |
|
Part Number |
Part Description |
|
|
|
|
|
|
|
|
|
|
1 |
|
51661020 |
MEDALLION |
|
|
|
2 |
|
91001127 |
NON-EDF COVER |
|
|
|
3 |
|
91001169 |
HOOD NAMEPLATE |
|
|
|
4 |
|
91001131 |
HOOD - STD |
|
|
|
5 |
|
21447242 |
SCREW-SELF TAPPING |
|
|
|
6 |
|
92001286 |
AGITATOR HSG-CP(SPLIT) |
|
|
|
7 |
|
91001111 |
TRUNNION COVER-R-MV(SPLIT) |
|
|
|
8 |
|
91001112 |
TRUNNION COVER-L-MV(SPLIT) |
|
|
|
9 |
|
91001126 |
NOZZLE LINER-AKK |
|
|
|
10 |
|
91001134 |
HEIGHT ADJ KNOB-AHB |
|
|
|
11 |
|
91001138 |
HEIGHT ADJ CAM-AG |
|
|
|
12 |
|
91001122 |
CAM HOLDER - AG |
|
|
|
13 |
|
38356014 |
TORSION SPRING |
|
|
|
14 |
|
91001116 |
ACTUATOR ARM TRUN |
|
|
|
15 |
|
91001136 |
IDLER PULLEY ARM-AG |
|
|
|
16 |
|
91001105 |
BEARING |
|
|
|
17 |
|
91001103 |
SCREW-TAPPING |
|
|
|
18 |
|
38434026 |
HANDLE RELEASE LEVER-AG |
|
|
|
19 |
|
91001165 |
PCB HALL ASSY. |
|
|
|
20 |
|
91001159 |
FRONT AXLE ASSY. |
|
|
|
21 |
|
91001156 |
MAIN BODY ASSY. |
|
|
|
22 |
|
42246150 |
AGIT HSG/VALVE ARM |
|
|
|
23 |
|
38331006 |
SPRING-TURBINE ACT |
|
|
|
24 |
|
91001142 |
VALVE DOOR - AG |
|
|
|
25 |
|
160017-- |
LOCK RING |
|
|
|
26 |
|
92001287 |
REAR WHEEL W/TREAD |
|
|
|
27 |
|
32434007 |
REAR AXLE |
|
|
|
28 |
|
91001106 |
RETAINING RING |
|
|
|
29 |
|
91001137 |
POLY V-BELT |
|
|
|
30 |
|
91001158 |
TRANSFER PULLEY |
|
|
|
31 |
|
91001110 |
TRANSFER PULLEY SHAFT |
|
|
|
32 |
|
91001107 |
RETAINING RING |
|
|
|
33 |
|
38528034 |
V-BELT |
|
|
|
34 |
|
91001128 |
BELT COVER - AG |
|
|
|
35 |
|
91001166 |
AGITATOR ASSY. 48414153 |
|
|
|
36 |
|
38781053 |
AGITATOR PULLEY SEAL |
|
|
|
37 |
|
91001157 |
BTTM PLT/GUARD ASY |
|
|
|
38 |
|
017001FW |
SCREW |
|
|
|
 |
|

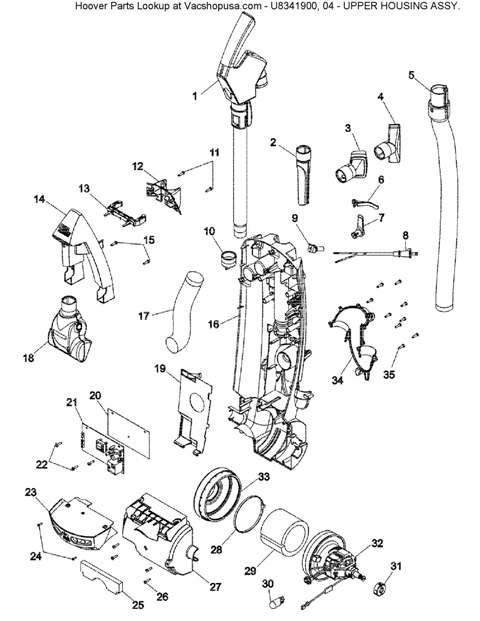

Hoover Parts Lookup |
|
|
|
|
|
|
|
|
Parts for MAYTAG Model "U8341900", Image Section "04 - UPPER
HOUSING ASSEMBLY" |
|
Item |
|
Part Number |
Part Description |
|
|
|
|
|
|
|
|
|
|
1 |
|
91001167 |
UPPER HNDL/WAND ASY |
|
|
|
2 |
|
92001194 |
CREVICE TOOL-AG |
|
|
|
3 |
|
92001195 |
DUSTING BRUSH ASY-AG |
|
|
|
4 |
|
92001196 |
FURNITURE NOZZLE-AG |
|
|
|
5 |
|
91001160 |
HOSE ASSY. |
|
|
|
6 |
|
91001117 |
HOSE CLIP |
|
|
|
7 |
|
91001153 |
CORD WRAP |
|
|
|
8 |
|
46383331 |
CORD-35` |
46383334 |
|
|
9 |
|
36215028 |
CORD PROTECTOR-WTBGL |
|
|
|
10 |
|
92001290 |
WAND RETAINER-AG |
|
|
|
11 |
|
21447242 |
SCREW-SELF TAPPING |
|
|
|
12 |
|
91001121 |
REL LTCH/WAND RET-MV |
|
|
|
13 |
|
91001139 |
WAND REL LATCH-AHB |
|
|
|
14 |
|
91001154 |
HANDLE - UPPER - MV |
|
|
|
15 |
|
21447242 |
SCREW-SELF TAPPING |
|
|
|
16 |
|
92001291 |
UPPER HOUSING-MV |
|
|
|
17 |
|
91001177 |
LOWER HOSE |
|
|
|
18 |
|
91001168 |
TURBINE HAND TOOL |
|
|
|
19 |
|
91001113 |
WIRE COVER |
|
|
|
20 |
|
91001123 |
INSULATOR |
|
|
|
21 |
|
91001164 |
POWER PCB BOARD |
|
|
|
22 |
|
21447242 |
SCREW-SELF TAPPING |
|
|
|
23 |
|
91001150 |
LENS, DIRT |
|
|
|
24 |
|
21447228 |
SCREW-SELF-TAPPING |
|
|
|
25 |
|
38769032 |
FINAL FILTER |
|
|
|
26 |
|
21447242 |
SCREW-SELF TAPPING |
|
|
|
27 |
|
91001125 |
MOTOR COVER - MV |
|
|
|
28 |
|
91001178 |
LEAD WIRE TIE |
|
|
|
29 |
|
91001152 |
FOAM MUFFLER |
|
|
|
30 |
|
27313107 |
BULB |
|
|
|
31 |
|
36322030 |
MOTOR MOUNT-SMALL |
|
|
|
32 |
|
91001108 |
MOTOR ASSY. |
|
|
|
33 |
|
91001148 |
MOTOR SEAL - AG |
|
|
|
34 |
|
91001141 |
DIRT DUCT COVER |
|
|
|
35 |
|
21447242 |
SCREW-SELF TAPPING |
|
|
|
36 |
|
91001162 |
WIRE HARNESS |
|
|
|
|
